Palo Alto Networks WildFire™ WF-500 Platform
Virtualized Next-Generation Firewall

Overview:

Modern cyberattacks and APTs rely on stealth, persistence, and the skilled avoidance of traditional security throughout the lifecycle of the attack. Palo Alto Networks offers an end-to-end approach to these threats that leverages the unique visibility of our next-generation firewall, combined with a cloud-based malware analysis environment in which new and unknown malware can run and conclusively be identified.

By default, you can leverage Palo Alto Networks WildFire infrastructure hosted in the public cloud, enabling any Palo Alto Networks firewall to add the ability to detect and block unknown malware. However, if you prefer not to use public cloud services, the WF-500 provides the ability to deploy WildFire as a private cloud on your own network.

Multiple firewalls can leverage a single WF-500 appliance for analyzing unknown malware. This allows you to deploy one large virtual environment for the analysis of malware that is shared across all firewalls, as opposed to deploying single-use hardware at every ingress/egress point and network point of presence.

Palo Alto Networks prepares cyber-security teams for this challenge by offering a new approach based on simple but powerful concepts:

• All network traffic must be fully inspected.
• Any unknowns must be actively and conclusively investigated at scale.
• Threats need to be blocked, not just detected.

These core principles are the foundation of Palo Alto Networks WildFire solution, in which full visibility, scalable analysis, and automated protection all work together to secure the network and its data. Only the next-generation firewall provides full-stack analysis and enforcement of all network traffic regardless of evasion and encryption, ensuring that hidden or anomalous threats are exposed. WildFire then proactively runs any unknown files in a safe, scalable sandbox environment where malware is conclusively identified and new protections are automatically developed. The result is a completely unique, closed loop approach to controlling cyberthreats based on next-generation visibility, cloud-based malware sandboxing, and reliable in-line blocking of threats.

WildFire Overview

At its core, WildFire detects and blocks targeted, polymorphic, or otherwise unknown malware. To do so, WildFire marries the unique visibility and control of the nextgeneration firewall with a cloud-based environment where malware is safely analyzed at scale. By proactively executing unknown files in a virtual environment, WildFire uncovers malware based on its real behavior, ensuring malware is detected even if it gets past traditional signatures.

This style of sandbox analysis is computationally intense by nature, and as a result, WildFire is designed on a cloud-based architecture that ensures seamless scalability. The WildFire public cloud enables any Palo Alto Networks customer to perform true malware sandboxing of unknown files without the need for any additional hardware. However, a hardware-enabled private cloud option is available to extend the WildFire architecture to customers who cannot use public cloud resources due to regulatory or privacy requirements.

When a threat is detected, WildFire automatically feeds information and protections back to WildFire subscribers. Within in minutes, subscribers receive firewall logs with a verdict of the analysis including event context. More importantly, WildFire generates true malware protections for the newly discovered malware, and shares those protections with all WildFire subscribers world-wide within 30 to 60 minutes of the initial detection. These protections not only stop rapidly spreading malware, but also track unique identifiers in the malware body to proactively find and block malware variants. Additionally, WildFire analysis is used to update DNS-based malware signatures, update URL categories on the fly and to generate new command-and-control signatures, all of which can be used to identify and disrupt the all-important malware command-and-control traffic.

Features:

WildFire automatically protects your networks from new and customized malware across a wide range of applications, including malware hidden within SSL-encrypted traffic. WildFire easily extends the threat prevention capabilities of the next-generation firewall to tackle some of the most challenging threats in the world today, and does so with full visibility and enforcement at up to 10Gbps.

• Proactively executes suspicious files in a safe environment to identify malware based on more than 100 malicious behaviors.
• Combines the visibility of the next-generation firewall with cloud-based analysis to ensure accurate, safe and scalable malware analysis.
• True in-line blocking of malware infecting files and command-and=control traffic at the firewall.

How WildFire Works:

Visibility Into All Traffic

Advanced persistent threats (APTs) thrive on their ability to hide from security solutions. This is true not just of new malware, but of all traffic used in the attack. As a result, the quality of a cybersecurity solution is only as good as its ability to look into all traffic, and this is precisely why the next-generation firewall is a prerequisite for controlling these advanced attacks. As with all Palo Alto Networks analysis, WildFire benefits from the full-stack analysis of all traffic, across all ports and the ability to tightly control a variety of methods that attackers use to hide.

• Abandoning Port-Based Assumptions: For all of the advancements in IT security, virtually all security products fall back on outdated assumptions based on port. Traffic is allowed or blocked based on port, signatures are applied based on port, and additional decoders and analysis are applied based on the port. Palo Alto Networks forgoes these assumptions and performs a full-stack identification and decode of all traffic across all ports. This context is constantly monitored and updated to reflect any changes in the application or protocol. This process remains fundamentally unique in network security and ensures attackers can't hide by routing traffic in nonstandard ways or tunneling within other approved traffic.
• Visibility Into SSL Encrypted Traffic: As more applications move to the web, SSL has become an increasingly common fact of life. And while SSL provides improved session security, it also has the effect of potentially creating an opaque vector where threats can flow without the prying eyes of security. Palo Alto Networks offers on-box SSL decryption that can be selectively applied based on policy. Decrypt only the traffic that interests you, and set policies to ensure traffic is never decrypted to sensitive sites such as health care or banking sites.
• Visibility Into Unknown Traffic: By positively classifying all traffic, Palo Alto Networks can further reveal the presence of any unknown or custom traffic. Such custom traffic is strongly correlated with malware and advanced threats, and simple next-generation firewall policies allow you to see this traffic and automatically enforce policy on it.

WildFire provides a logical combination of next-generation firewall hardware and scalable cloud-based malware analysis.

Conclusive Behavior-Based Analysis

When an unknown file is seen by the firewall, the file is transferred to the WildFire virtualized environment, where it is executed and all behaviors and communications are observed. WildFire monitors for more than 100 malicious behaviors to identify the true nature of malicious files based on their actions including:

• Changes Made to the Host: WildFire observes all process and hooking behaviors, changes made to registries, auto-run modifications, changes to security settings and any files that are created or modified. All changes are documented in WildFire reports.
• Malicious Traffic and Hacking: WildFire looks for suspicious or malicious network behaviors such as establishing backdoors, downloading additional executables, visiting dynamic DNS domains, scanning for vulnerabilities and much more.
• Security Avoidance Behaviors: WildFire also constantly looks for malware techniques used to avoid analysis such as attempting to avoid executing while being monitored, injecting into running or trusted processes and disabling host-based security features.

Using the Power of Cloud-Computing for Malware Analysis

Virtualized malware analysis requires massive amounts of computing resources, because the solution must provide a fully independent virtual environment to analyze every unknown or suspicious file. This means that computing requirements can swing wildly depending on the amount and type of traffic hitting the network. This has the potential to require a great deal of hardware for analysis, and even worse to create bottlenecks that limit the analysis of malware. To solve this problem, WildFire leverages a cloud-based architecture that allows computing resources to scale elastically based on need.

• Shared Protections: In addition to improved scalability, the WildFire cloud ensures that users can benefit from the analysis of all other WildFire users. Malware identified in one location, generates protections that apply to all users worldwide. This applies not only to malware samples, but also dangerous URLs, and DNS queries from malware as well.
• Public Cloud: By default, WildFire leverages a public cloud environment managed directly by Palo Alto Networks. All files are securely transferred between the firewall and the WildFire over encrypted connections, signed on both sides by Palo Alto Networks. Any files that are found to be benign are destroyed, while malware files are saved for further analysis.
• Private Cloud: For customers who do not use cloud-based solutions due to regulatory or privacy concerns, Palo Alto Networks offers a private cloud option for WildFire. This private cloud is enabled by the WF-500 WildFire Appliance, and allows customers to run a fully functioning version of the WildFire environment that remains within the customer's network.

Automated Prevention

Once a file is determined to be malicious, WildFire automatically develops protections for the new threat and generates integrated and correlated logs for security staff. Within minutes of submitting a file to WildFire, subscribers receive an integrated log with the verdict of the malware analysis, which is correlated with any other relevant logs in the Palo Alto Networks user interface. Additionally, all WildFire users can receive notifications via email based on policy.

The WildFire public cloud also develops a range of protections for all newly discovered malware (customers using a private cloud deployment have the option to submit confirmed malware to the public cloud in order to generate protections). WildFire auto-matically develops, tests and delivers new malware signatures within 30 to 60 minutes to all WildFire subscribers, worldwide. In addition to malware signatures, WildFire data is used to update DNS-based signatures, URL categories and command-and-control signatures as well.

• Malware Signatures: These signatures are based on unique identifiers in the malware payload that allow a single WildFire signature to block multiple polymorphic variants. These signatures are delivered to WildFire subscribers within 30 to 60 minutes of the initial submission of the file.
• DNS Signatures: WildFire records all DNS queries and maintains a database and signature list of DNS requests that are unique to botnets and malware operations.
• Command-and-Control Signatures: Palo Alto Networks researchers maintain full coverage for all command-and-control traffic observed in WildFire. These signatures provide a key method for identifying and controlling any malware infections already in the network.
• URL Categories: WildFire monitors any URLs and domains that malware communicates with. WildFire then provides updates on any newly discovered malicious domains to PAN-DB, Palo Alto Networks internally developed URL filtering database.

Malware Forensics and Event Analysis:

Integrated Logging and Reporting

WildFire subscribers receive integrated WildFire logs on their firewalls, enabling teams to correlate WildFire events with other important events observed by the firewall. This ensures that staff can quickly and seamlessly tie applications, URLs, files, known threats and unknown threats into a coordinated approach to threat prevention. Additionally, Palo Alto Networks provides pre-built reports for WildFire events to provide ongoing documentation of emerging threats.

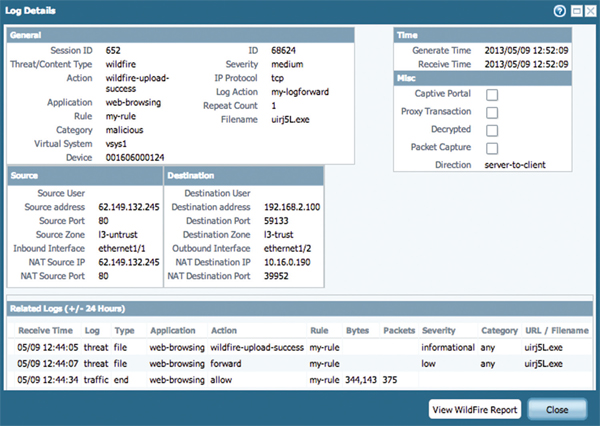

Integrated WildFire Logs

WildFire Portal

When dealing with new and emerging threats, it's important that security teams be able to quickly and easily investigate malware in order to correlate an infection with other security events or simply to aid in the cleanup in the case of an infection.

The WildFire Portal provides detailed analysis and forensics for every file analyzed by WildFire. Staff can track the overall rates of malware detected, and can drill down into detailed analysis on any given file. Staff can easily see the verdict of a file, the application, IP address and/or URL that delivered the file as well as the user that was targeted.

The analysis then provides granular details of the malware including all observed malicious behaviors, a list of any and all domains the malware visited, registry keys added or modified as well as any files created or modified. This analysis provides the context to know exactly how the malware attempted to enter the network, how it tries to communicate back out of the network and actions it performed on the target host. This information can provide teams with details to establish hostbased indicators for infected machines, as well as providing the real-world data needed to adapt security policies to changing attack strategies. This data also helps security teams to teach and train network users by showing the names, locations and applications that have been used against them in phishing or social engineering attempts.

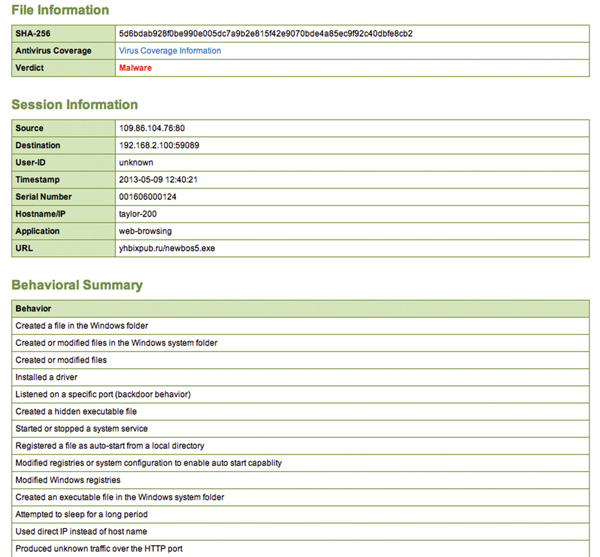

Analysis From the WildFire Portal

Maintaining the Privacy of Your Files

As with any use of the cloud, an enterprise must ensure that the cloud is used safely and without exposing enterprise data. WildFire is no exception, and provides customers with full control over what data is shared with WildFire and the additional protection of multiple layers of professionally managed security to ensure data is never exposed. Palo Alto Networks also offers the WF-500 appliance for customers who prefer to deploy WildFire as a private cloud.

Whether deployed as a private or public cloud, security teams always retain full control over exactly which files should be sent to the WildFire cloud. Teams may want to analyze all unknown files or simply those files coming from the Internet or other untrusted zones. In addition to control over which files are sent for analysis, policies can be set to control what relevant session information should be included with the sample for analysis. Session information refers to the context of the network session responsible for delivering the unknown file such as the application, target user, port number, source IP address, user and host name, as well as the attacking IP or URL. This data is often particularly useful for correlation purposes if a file is found to be malicious, but is not required for WildFire to determine the status of the file.

When a file is sent for analysis, the firewall establishes a secure connection between the local firewall and Palo Alto Networks WildFire cloud or local WF-500 appliance. This connection is secured on both ends by client certificates signed by Palo Alto Networks ensuring that data remains secure in transit and preventing the possibility of a man-in-the-middle attack. Once delivered to the WildFire cloud, the file is protected behind multiple layers of professionally managed security. Files are only allowed inbound to the WildFire cloud to ensure that benign files never leave the WildFire environment. Following analysis, benign files are destroyed and only the hash value retained in order to prevent future re-analysis.

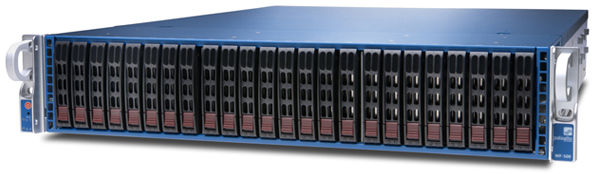

Technical Specifications:

Model	WF-500
Hardware Specifications
Processor	Dual 6-Core Intel Processor with Hyper-Threading
Memory	128 GB RAM
System Disk	120GB SSD
Storage	2TB RAID1: 4 x 1TB RAID Certified HDD for 2 TB of RAID Storage
I/O	4x10/100/1000, DB9 Console serial port, USB
Rack Mountable	2U
Power Supply	Dual 920W power supplies in hot swap, redundant configuration
Maximum Power Consumption	510 Watts
Maximum BTU/HR	1740
Input Voltage	100-240VAC
Maximum Current Consumption	11 Amps @ 100VAC
Safety	UL/CSA, CB
EMI	FCC Class A, VCCI Class A, CE Class A
Environment
Operating temperature	32° to 95° F, 0° to 35° C
Non-operating temperature	-4° to 158° F, -20° to 70° C

Documentation:

Download the Palo Alto Networks Wildfire Datasheet (PDF).
