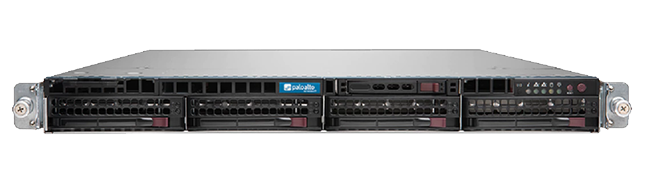

The Palo Alto Networks® M-200 and M-600 appliances are multi-function appliances that you can configure to function in Panorama™ Management mode, Panorama Management-only mode, Panorama Log Collector mode, or PAN-DB Private Cloud mode.

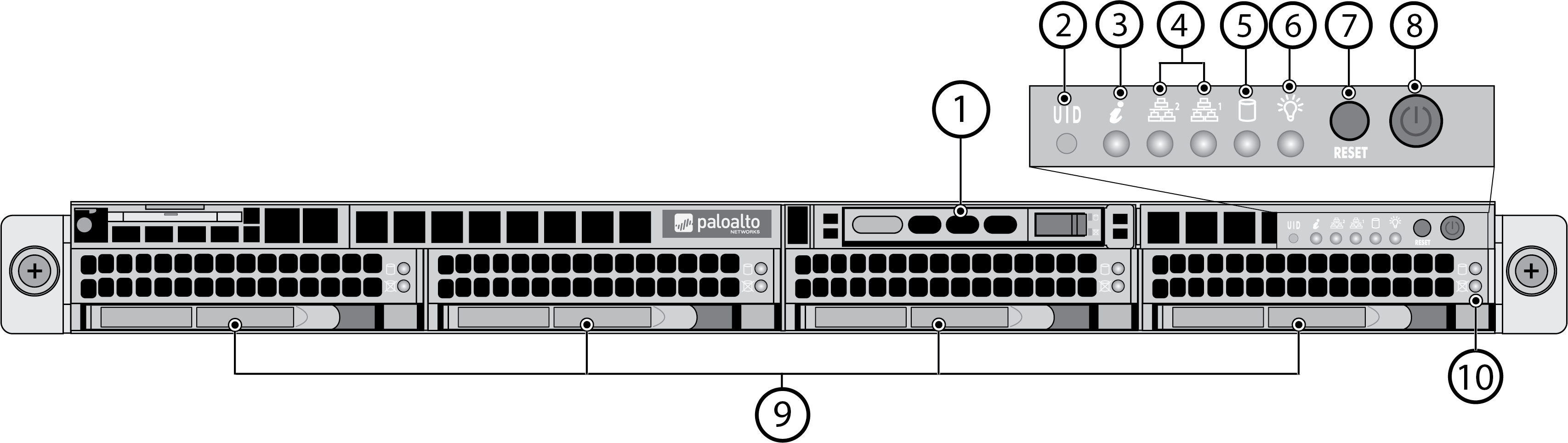

240GB solid-state drive (SSD) used to store
the operating system files and system logs.
2
Unique Identification (UID) button
Use the UID feature to help you locate the appliance
when you move from the front to the back of the equipment rack where
the appliance is installed. When you push the UID button to enable
the UID feature, both the front-panel System information LED and
the back-panel UID LED illuminate bright blue to help you locate
the appliance when you move between opposite sides of the equipment
rack. Push the UID button again to deactivate these LEDs.
3
System information (overheat and UID) LED
Solid red—An overheat condition
occurred.
Blinking red at the rate of one blink per second (1Hz)—A
fan failure occurred.
Blinking red at the rate of four blinks per second (.25Hz)—One
of the two power supplies is not providing power to the appliance
(possibly because a power supply failed or because there is no power
source connected to the power supply).
Solid blue—The UID feature is activated (see the UID
button description).
4
Network activity LEDs
Blinking green indicates network activity.
5
Hard-disk drive (HDD) LED
Blinking yellow indicates IDE
channel activity (SAS/SATA drive) on the front log drives.
6
Power LED
Solid green indicates that
the appliance is powered on.
7
Reset button
Press this button to reboot
the appliance.
8
Power button
Press this button to power
on or power off the appliance. Powering off the appliance with this button
puts the appliance in standby power mode. To completely power off
the appliance, you must disconnect the AC power cords from both
power supplies.
9
Hard-disk drives (HDDs)
Disk drive bays and HDDs used
for log storage. By default, the M-200 ships with four HDDs installed
in drive bays A1/A2 and B1/B2. Each pair of drives are in a RAID
1 configuration (A1-A2 is a RAID 1 pair and B1-B2 is a RAID 1 pair).
Bottom LED—Solid red indicates a log drive failure.

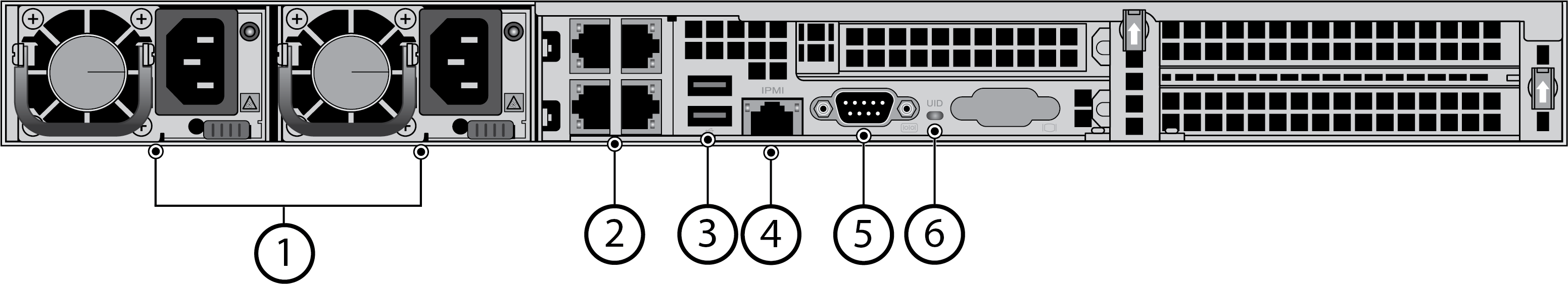

Back Panel:
Item
Component
Description
1
Power supplies
Use the AC power supply inputs to connect
power to the appliance. The second power supply is for redundancy.
2
Ethernet ports
Four RJ-45 10Mbps/100Mbps/1000Mbps Ethernet
ports. While facing the back of the appliance, the ports are labeled
as follows:
The port labels are located on top of the appliance.
Upper left—Management (MGT) port used for managing the
appliance and for data traffic.
Upper right—Ethernet1/1
Lower left—Ethernet1/2
Lower right—Ethernet1/3
For information on
configuring these ports, refer to the Panorama™ Administrator’s
Guide on the Technical Documentation Portal for the
release version running on your appliance. If the appliance is in
PAN-DB mode, refer to the appropriate release-specific PAN-OS® Administrators
Guide.
3
USB ports
Not used.
4
IPMI port
Not used.
5
Console port
Use this port to connect a
management computer to the appliance using a 9-pin serial cable
and terminal emulation software.
The console connection provides
access to appliance boot messages, the Maintenance Recovery Tool
(MRT), and the command line interface (CLI).
If your
management computer does not have a serial port, use a USB-to-serial
converter.
Use the following settings to configure
your terminal emulation software to connect to the console port:
Data rate: 9600
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
6
Unique Identification (UID) LED
UID LED that illuminates bright blue when
you push the UID button on the front of the appliance.
For
information on using the UID feature, see the UID button description
for the M-200
Appliance Front Panel .

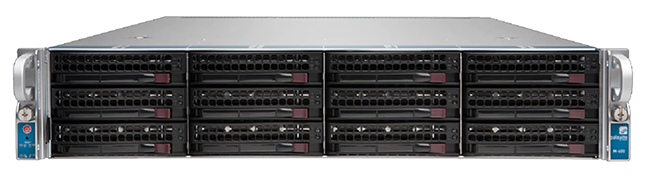

M-600

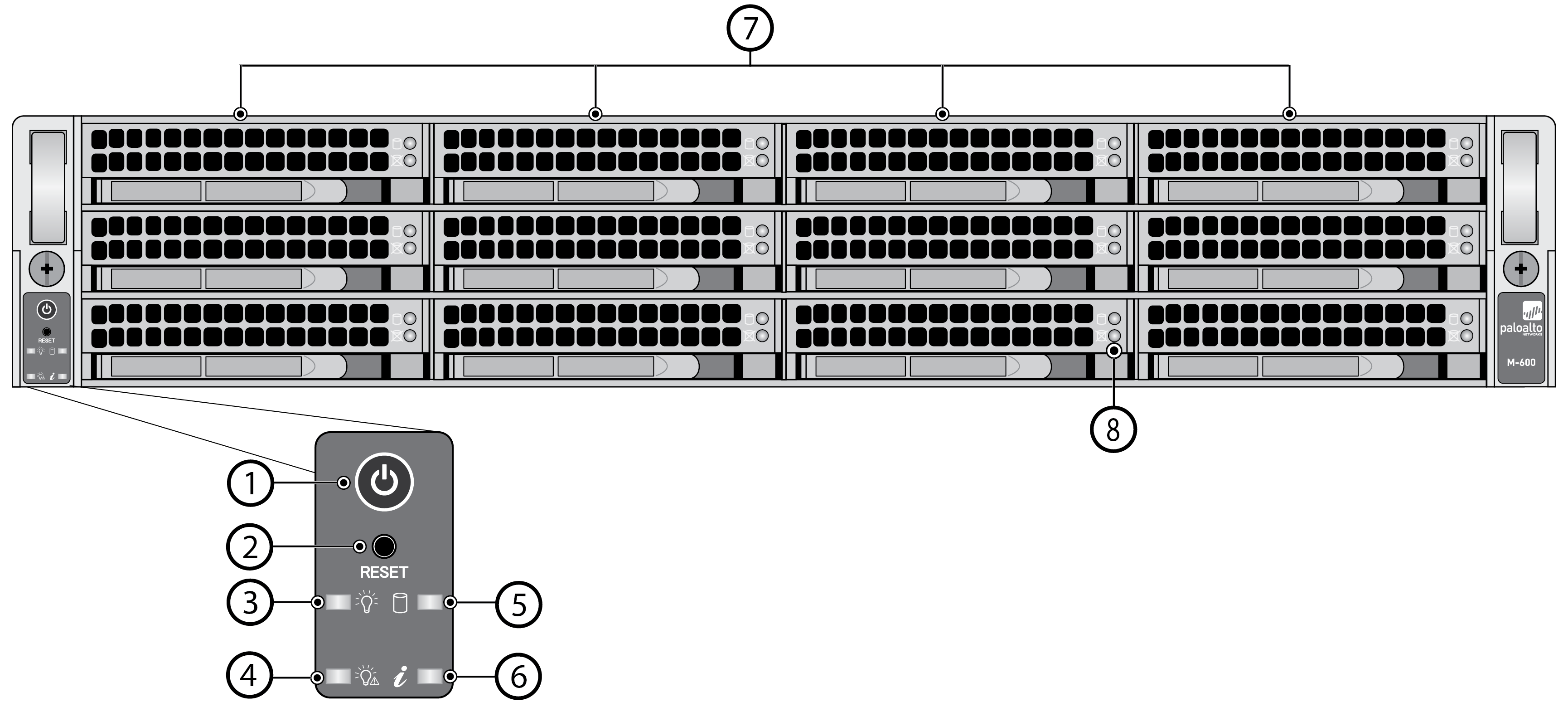

Front Panel:
Item
Component
Description
1
Power button
Press this button to power on or power off the
appliance. Powering off the appliance with this button puts the
appliance in standby power mode. To completely power off the appliance,
you must disconnect the AC power cords from both power supplies.
2
Reset button
Press this button to reboot the appliance.
3
Power LED
Solid green indicates that the appliance
is powered on.
4
Power failure LED
Solid red indicates that either a power supply
failed or that there is no power source connected to a power supply.
5
Hard-disk drive (HDD) LED
Blinking yellow indicates IDE channel activity
(SAS/SATA drive) on the front log drives.
6
System information (overheat and UID) LED
Solid red—An overheat condition
occurred.
Blinking red at the rate of one blink per second (1Hz)—A
fan failure occurred.
Blinking red at the rate of four blinks per second (.25Hz)—One
of the two power supplies is not providing power to the appliance
(possibly because a power supply failed or because there is no power
source connected to the power supply).
Solid blue—The UID feature is activated (see the UID
button description for the M-600
Appliance Back Panel .)
7
Hard-disk drives (HDDs)
Disk drive bays and HDDs used
for log storage. By default, the M-600 ships with four HDDs installed
in drive bays A1/A2 and B1/B2. You can install up to eight additional
drives (four additional RAID 1 pairs) in the remaining drive bays
(C1/C2, D1/D2, E1/E2, and F1-F2) to increase log storage capacity.
Each
pair of drives are in a RAID 1 configuration. For example, A1-A2
is a RAID 1 pair and B1-B2 is a RAID 1 pair.
For details on
storage capacity, refer to the Panorama Datasheet . For details on adding
additional storage to the appliance, refer the Panorama Administrator’s Guide
on the Technical Documentation Portal for the
release version running on your appliance.
8
Hard-disk drive (HDD) LEDs
Status LEDs—two for each log drive:
Top
LED—Flashing blue indicates drive activity.
Bottom LED—Solid red indicates a log drive failure.

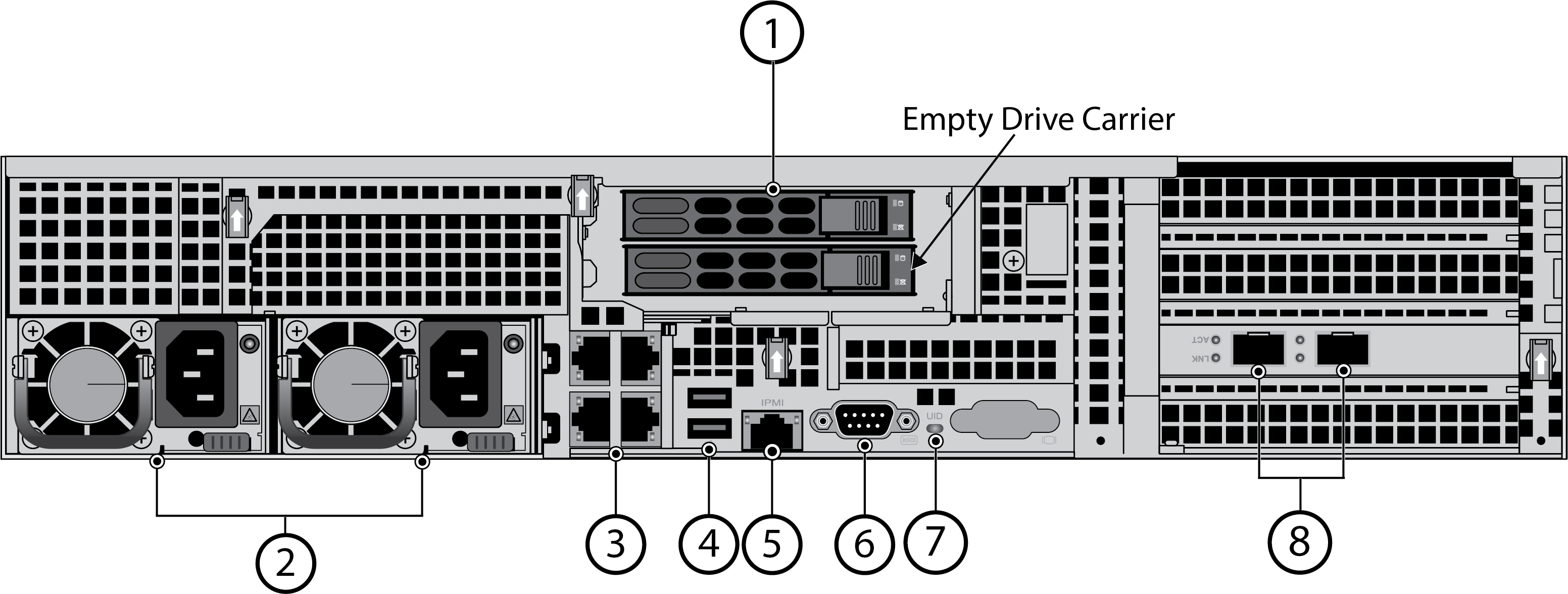

Back Panel:
Item
Component
Description
1
System drive
240GB solid-state drive (SSD)
used to store the operating system files and system logs.
2
Power supplies
Use the AC power supply inputs to connect
power to the appliance. The second power supply is for redundancy.
3
Ethernet ports
Four RJ-45 10Mbps/100Mbps/1000Mbps Ethernet
ports. While facing the back of the appliance, the ports are labeled
as follows:
The port labels are located on top of the appliance.
Upper left—Management (MGT) port used for managing the
appliance and for data traffic.
Upper right—Ethernet1/1
Lower left—Ethernet1/2
Lower right—Ethernet1/3
For information on
configuring these ports, refer to the Panorama™ Administrator’s
Guide on the Technical Documentation Portal for the
release version running on your appliance. If the appliance is in
PAN-DB mode, refer to the appropriate release-specific PAN-OS® Administrators
Guide.
4
USB ports
Not used.
5
IPMI port
Not used.
6
Console port
Use this port to connect a
management computer to the appliance using a 9-pin serial cable
and terminal emulation software.
The console connection provides
access to appliance boot messages, the Maintenance Recovery Tool
(MRT), and the command line interface (CLI).
If your
management computer does not have a serial port, use a USB-to-serial
converter.
Use the following settings to configure
your terminal emulation software to connect to the console port:
Data rate: 9600
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
7
Unique Identification (UID)
button and LED
Use the UID feature to help
you locate the appliance when you move from the back to the front
of the equipment rack where the appliance is installed. When you
push the UID button to enable the UID feature, both the front-panel System
information LED and the back-panel UID LED illuminate bright blue
to help you locate the appliance when you move between opposite
sides of the equipment rack. The back-panel UID LED is located to
the right of the UID button. Push the UID button again to deactivate
these LEDs.
The UID button is very small and is located to
the left of the UID LED. Use a small object, such as a paper clip,
to press the button.
8
SFP+ ports
Two SFP+ (10Gbps) ports. While facing the
back of the appliance, the left port is labeled Ethernet1/5 and
the right port is labeled Ethernet1/4.
The port labels
are located on top of the appliance.
For information
on configuring these ports, refer to the Panorama™ Administrator’s
Guide on the Technical Documentation Portal for the
release running on your appliance. If the appliance is in PAN-DB
mode, refer to the appropriate release-specific PAN-OS® Administrators
Guide.
