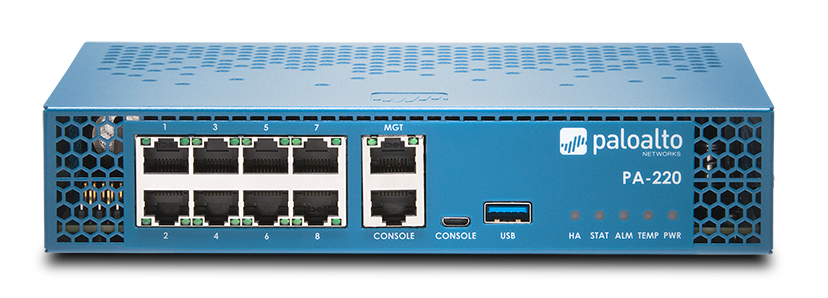

Palo Alto Networks Enterprise Firewall PA-220
Next-Generation Firewall in a Small Footprint

Overview:

Classifies all applications, on all ports, all the time

• Identifies the application, regardless of port, encryption (SSL or SSH), or evasive technique employed
• Uses the application, not the port, as the basis for all of your safe enablement policy decisions: allow, deny, schedule, inspect and apply traffic-shaping
• Categorizes unidentified applications for policy control, threat forensics or App-ID™ application identification technology development

Enforces security policies for any user, at any location

• Deploys consistent policies to local and remote users running on the Windows®, Mac® OS X®, Linux®, Android®, or Apple® iOS platforms
• Enables agentless integration with Microsoft® Active Directory® and Terminal Services, LDAP, Novell® eDirectory™ and Citrix®
• Easily integrates your firewall policies with 802.1X wireless, proxies, NAC solutions, and any other source of user identity information

Prevents known and unknown threats

• Blocks a range of known threats, including exploits, malware and spyware, across all ports, regardless of common threat-evasion tactics employed
• Limits the unauthorized transfer of files and sensitive data, and safely enables non-work-related web surfing
• Identifies unknown malware, analyzes it based on hundreds of malicious behaviors, and then automatically creates and delivers protection

The controlling element of the Palo Alto Networks® PA-220 is PAN-OS® security operating system, which natively classifies all traffic, inclusive of applications, threats and content, and then ties that traffic to the user, regardless of location or device type. The application, content and user – in other words, the business elements that run your business – are then used as the basis of your security policies, resulting in an improved security posture and a reduction in incident response time.

Highlights

• High availability with active/active and active/passive modes
• Redundant power input for increased reliability
• Fan-less design
• Simplified deployments of large numbers of firewalls through USB

Performance and Capacities1	PA-220
Firewall throughput (App-ID enabled)2, 4	500 Mbps
Threat prevention throughput3, 4	150 Mbps
IPsec VPN throughput2, 4	100 Mbps
New sessions per second5	4,200
Max sessions	64,000

1. Performance and capacities are measured under ideal testing conditions.
2. Firewall throughput measured with App-ID and User-ID features enabled utilizing 64K HTTP transactions
3. Threat prevention throughput measured with App-ID, User-ID, IPS, AntiVirus and Anti-Spyware features enabled utilizing 64K HTTP transactions
4. New sessions per second is measured with 4K HTTP transactions
5. Adding virtual systems base quantity requires a separately purchased license

Networking Features:

The PA-220 supports a wide range of networking features that enable you to more easily integrate our security features into your existing network.

Interface Modes

L2, L3, Tap, Virtual wire (transparent mode)

Routing

OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, Static routing

Policy-based forwarding

Point-to-Point Protocol over Ethernet (PPPoE)

Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3

Bidirectional Forwarding Detection (BFD)

IPv6

L2, L3, Tap, Virtual wire (transparent mode)

Features: App-ID, User-ID™, Content-ID™, WildFire™ and SSL

SLAAC

IPsec VPN

Key exchange: Manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication)

Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)

Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512

VLANs

802.1q VLAN tags per device/per interface: 4,094/4,094

Network Address Translation (NAT)

NAT modes (IPv4): Static IP, dynamic IP, dynamic IP and port (port address translation)

NAT64, NPTv6

Additional NAT features: Dynamic IP reservation, tunable dynamic IP and port oversubscription

High Availability

Modes: Active/Active, Active/Passive

Failure detection: path monitoring, interface monitoring

Technical Specifications:

I/O

(8) 10/100/1000

Management I/O

(1) 10/100/1000 out-of-band management port, (1) RJ-45 console port (1) USB port (1) Micro USB console port

Storage Capacity

32GB SSD

Power Supply (Avg/Max Power Consumption)

Dual redundant 40W (21W/25W)

Max BTU/hr

102 BTU

Input Voltage (Input Frequency)

100-240VAC (50-60Hz)

Max Current Consumption

Firewall—1.75A @ 12VDC Power supply (AC side)—0.5A @ 100VAC, 0.2A @ 240VAC

Weight (Stand-Alone Device/As Shipped)

3.0 lbs / 5.4 lbs

Safety

cCSAus, CB

EMI

FCC Class B, CE Class B, VCCI Class B

Certifications

See: https://www.paloaltonetworks.com/company/certifications.html

Environment

Operating temperature: 32° to 104° F, 0° to 40° C Non-operating temperature: -4° to 158° F, -20° to 70° C Passive cooling

Documentation:

Download the Palo Alto Networks Firewall Overview Datasheet (PDF).

Download the Palo Alto Networks PA-220 Series Specification Datasheet (PDF).
